Custom Circuit Solutions LLC SKU: SOIC-28-W-PIC24F-LF

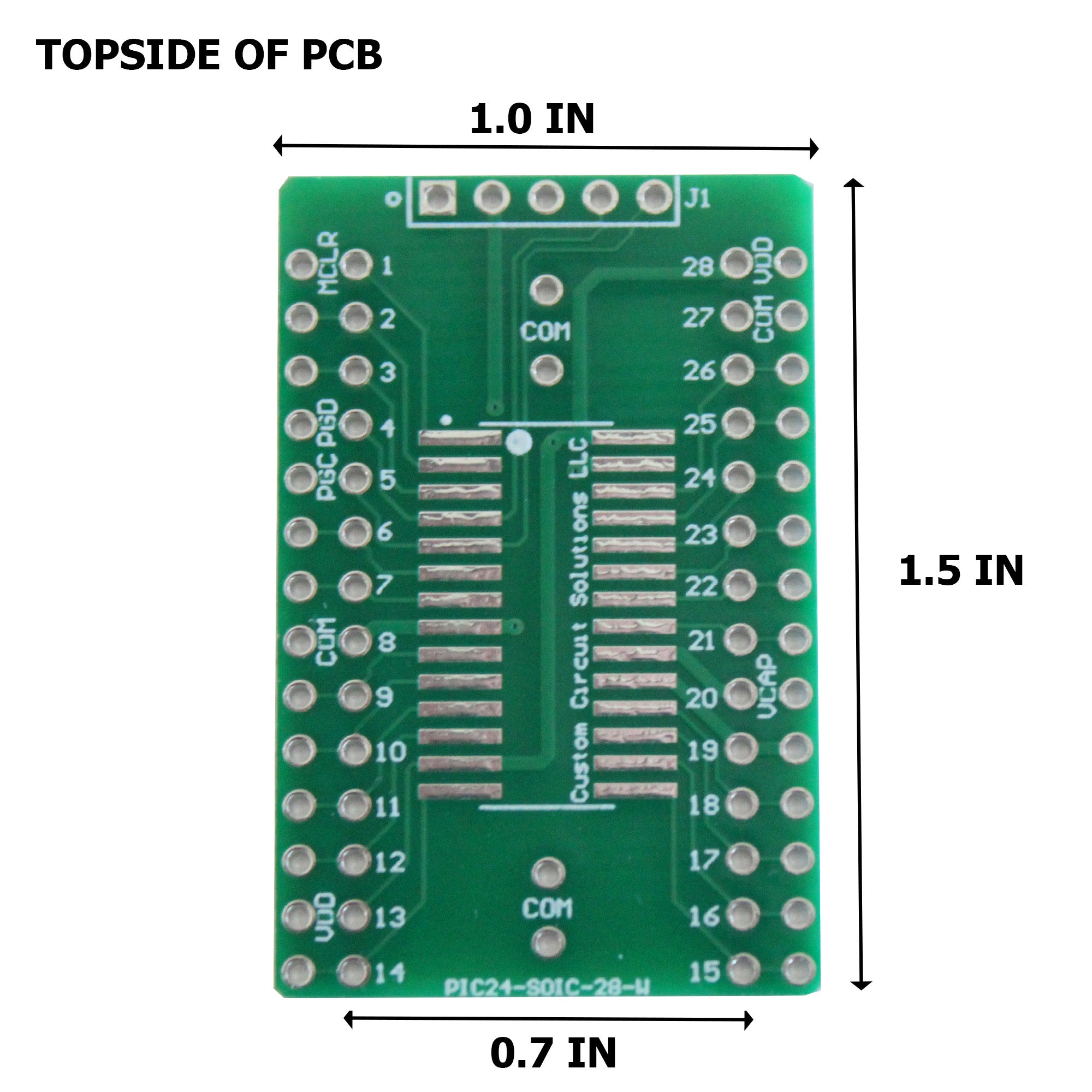

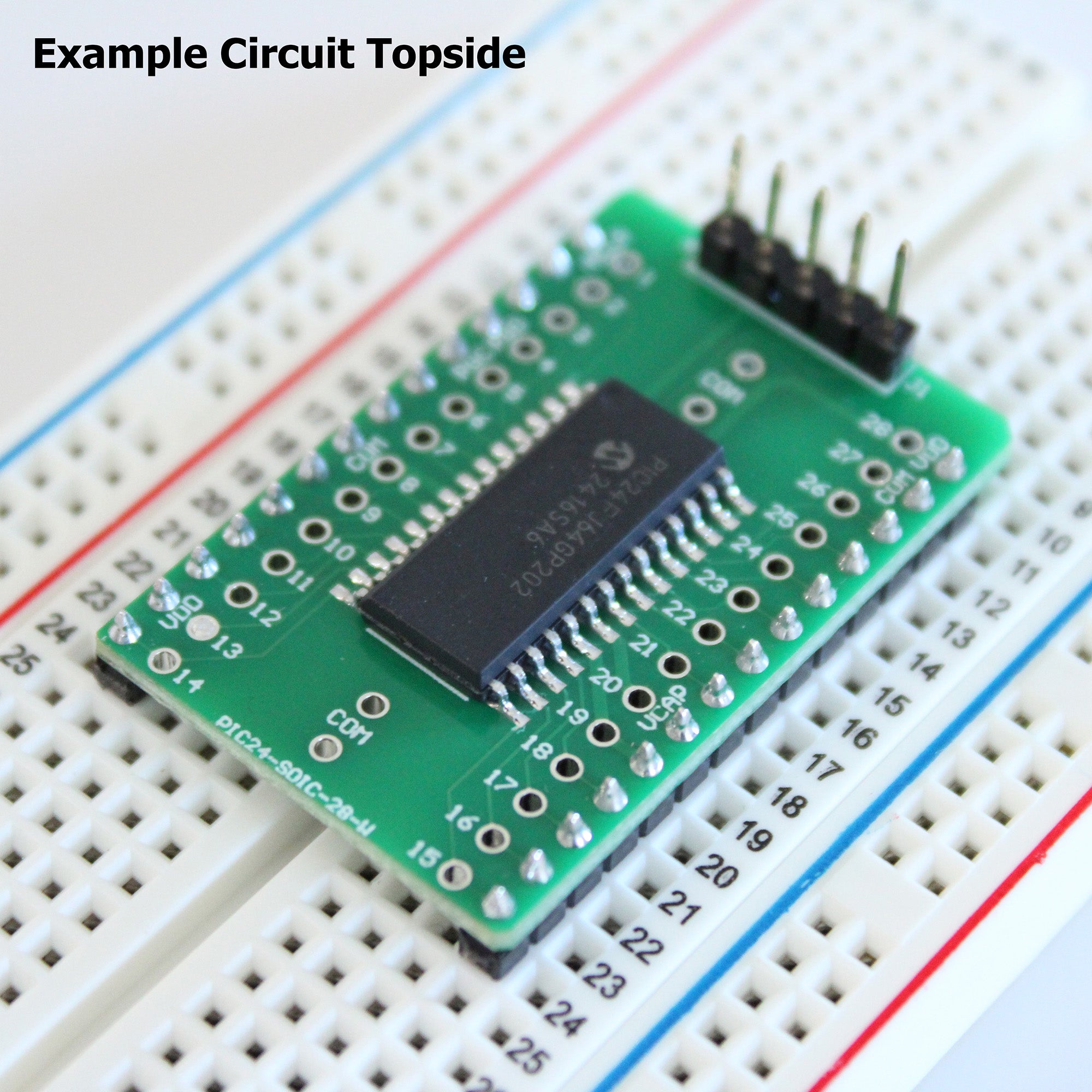

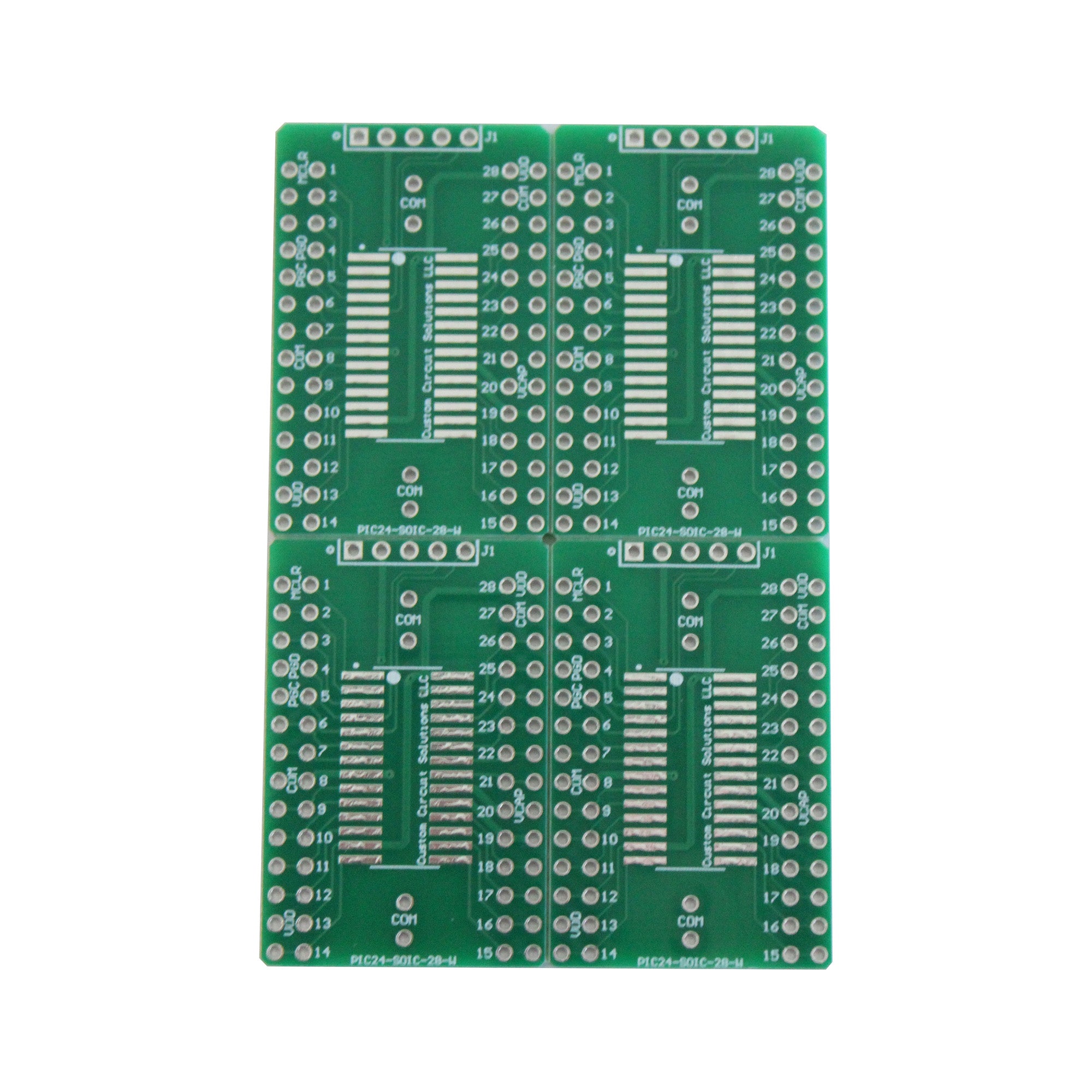

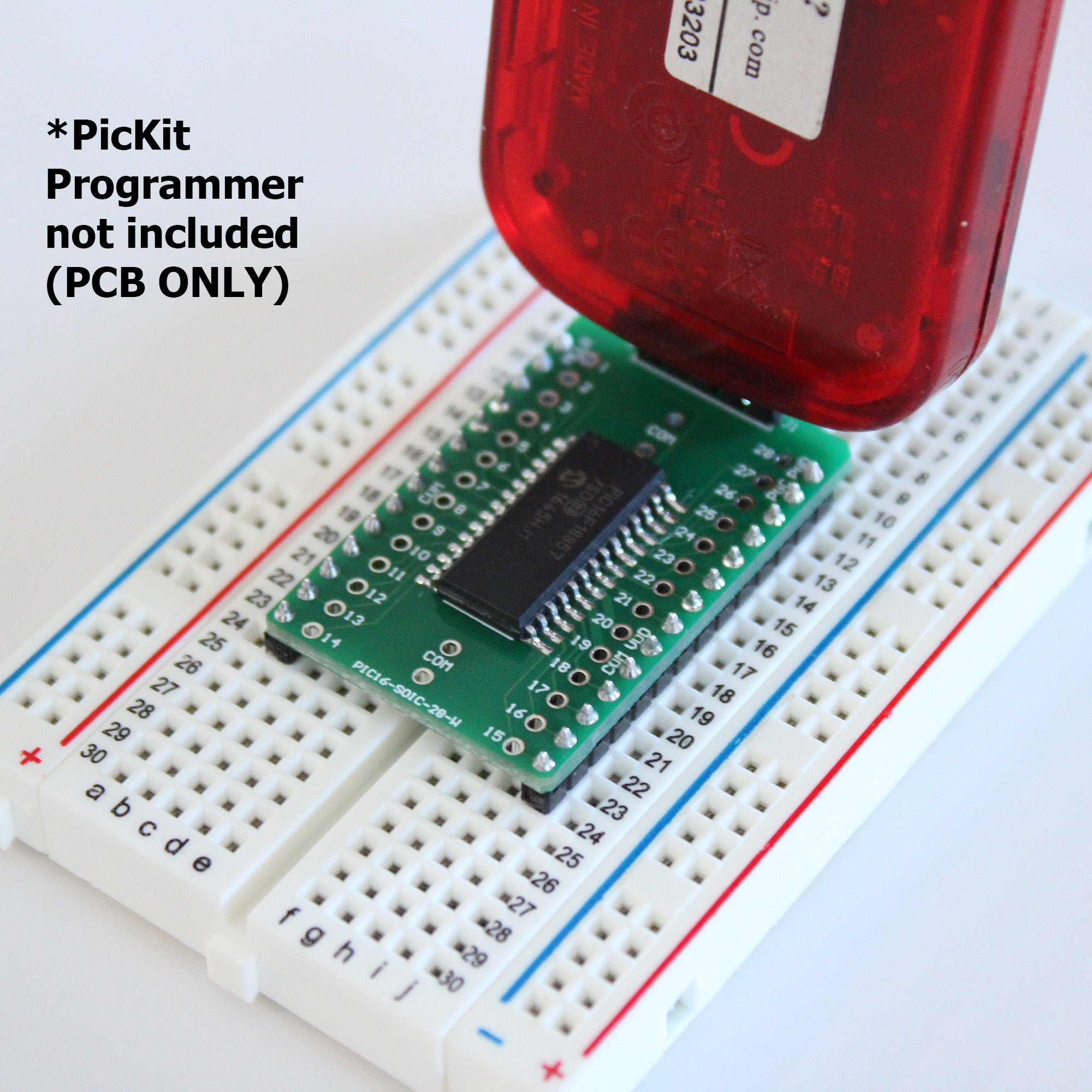

  • Include an SMT adapter (SOIC-28), required holes for an integrated PicKit programming header (PicKit not included), spare solder holes, and all required passive component pads in a single reusable SMD breakout board. COMPONENTS NOT INCLUDED.

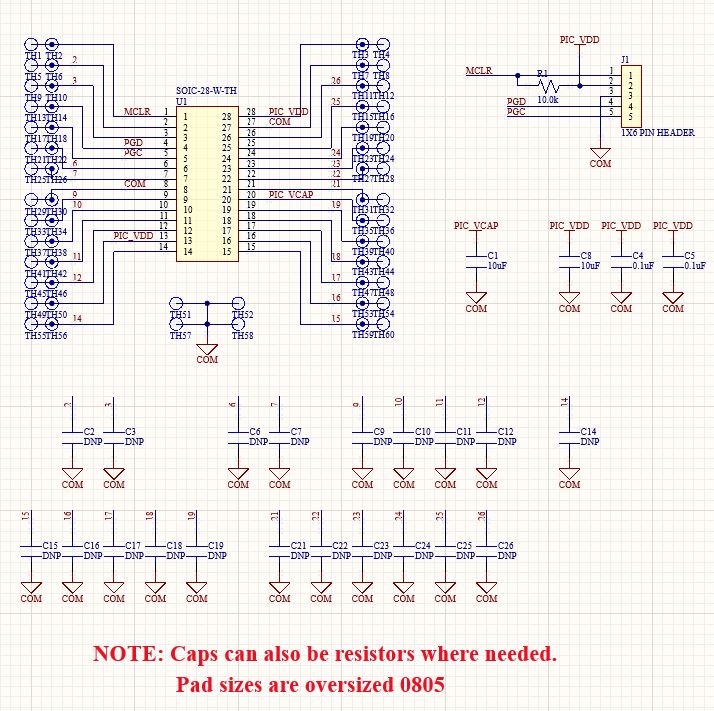

  • Compatible with a wide range of SOIC 28-pin PIC devices including most PIC-24 and PIC-32 devices. Please see posted schematic to verify your specific device. Please confirm: (Pin 1=MCLR), (Pin 4 =PGD), (Pin 5=PGC), (Pins 13,28=VDD), (Pins 8,27=COM), and (PIN=VCAP)

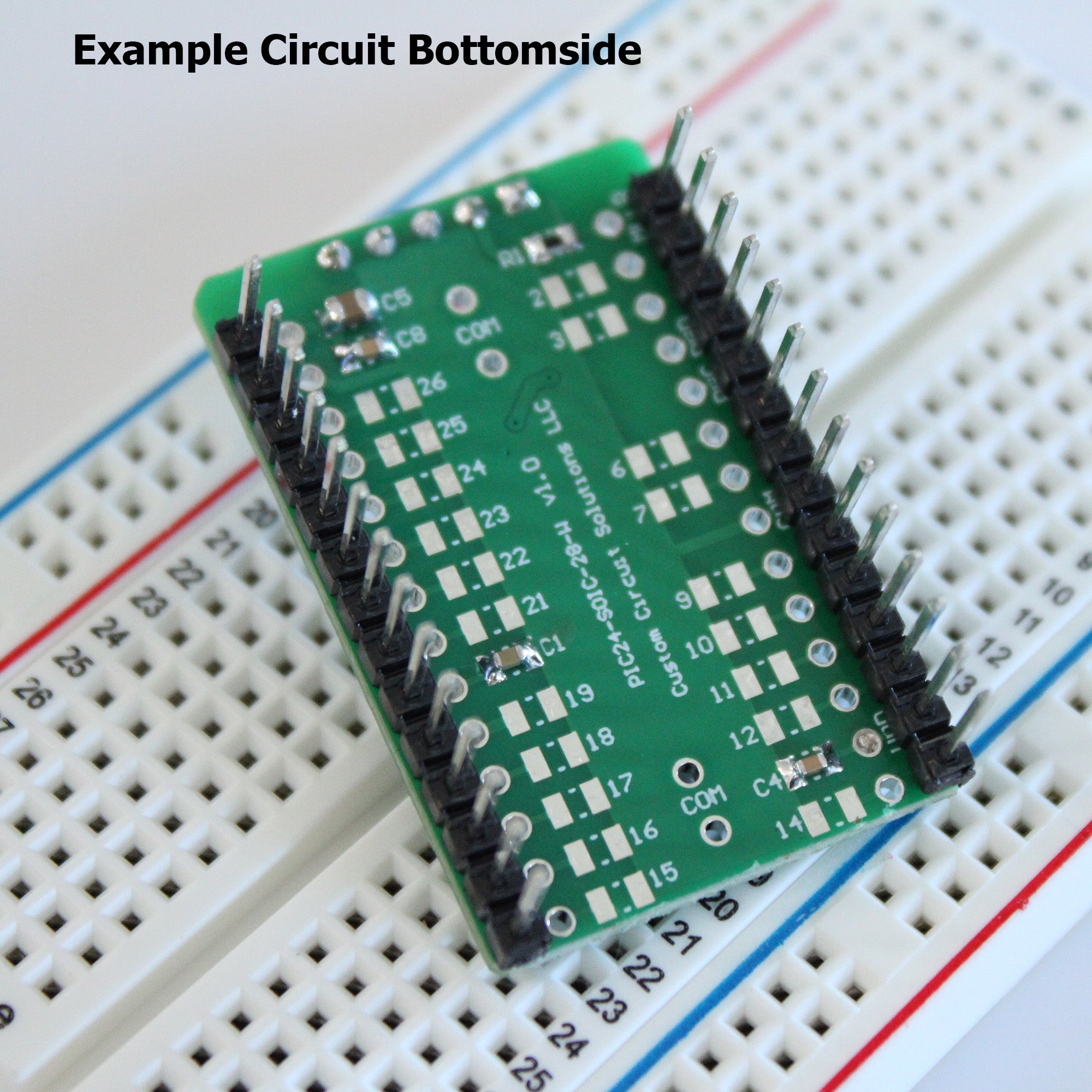

  • Dual Rows of solder pin holes provides much more flexibility in soldering and mounting your circuit. Jumper wires can also be soldered between holes, reducing number of breadboard connections.
  • Oversized Solder Pads simplify hand soldering. Can be easily soldered without special equipment in as little as a few seconds. See our website for easy soldering tips.

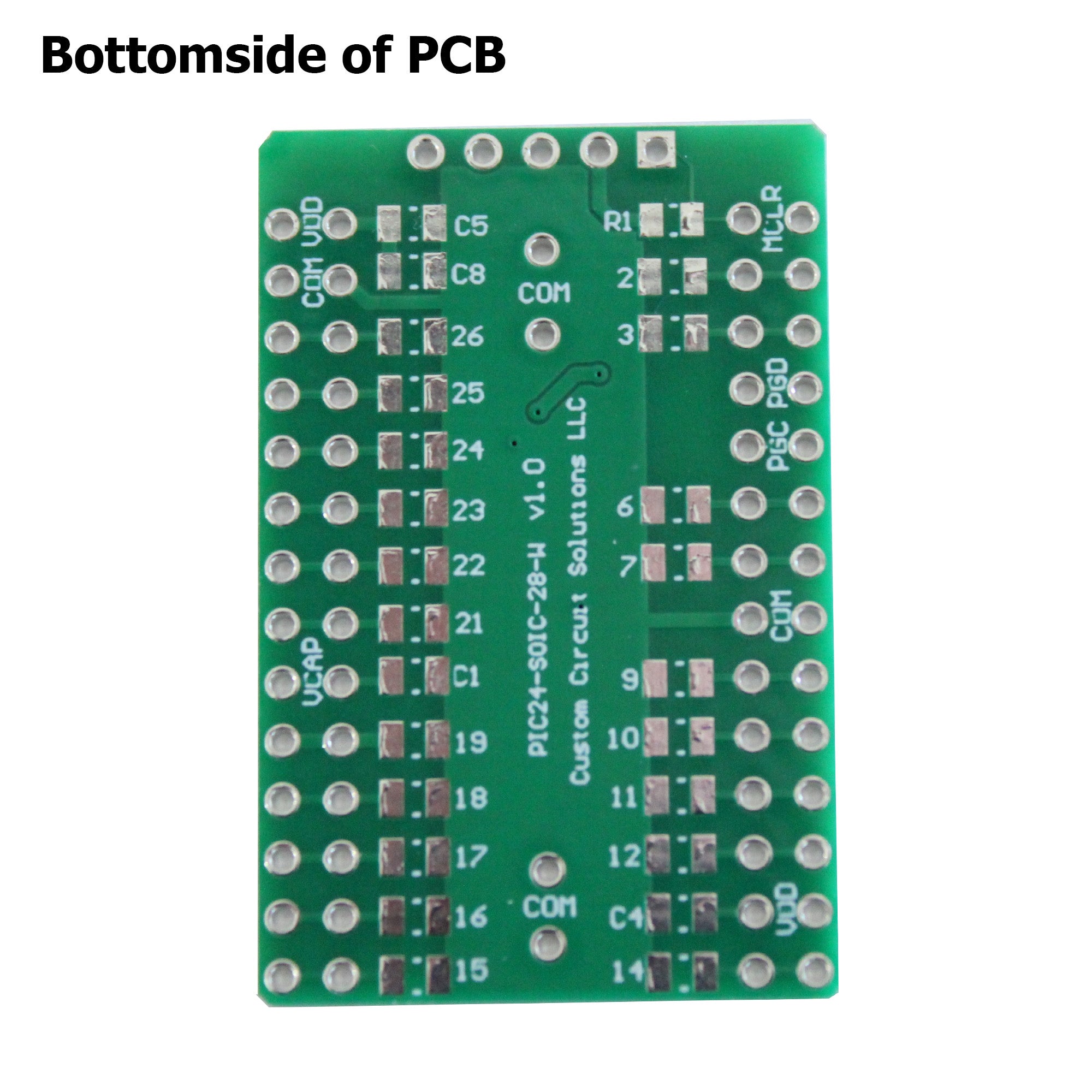

  • 0603/0805 Footprint Pads between each pin and the local common plane (or pin to pin) allow for integrated onboard SMT res/cap connections, greatly reducing the number of wired connections.
$7.99 -100%
$7.99

In stock, ready to ship
