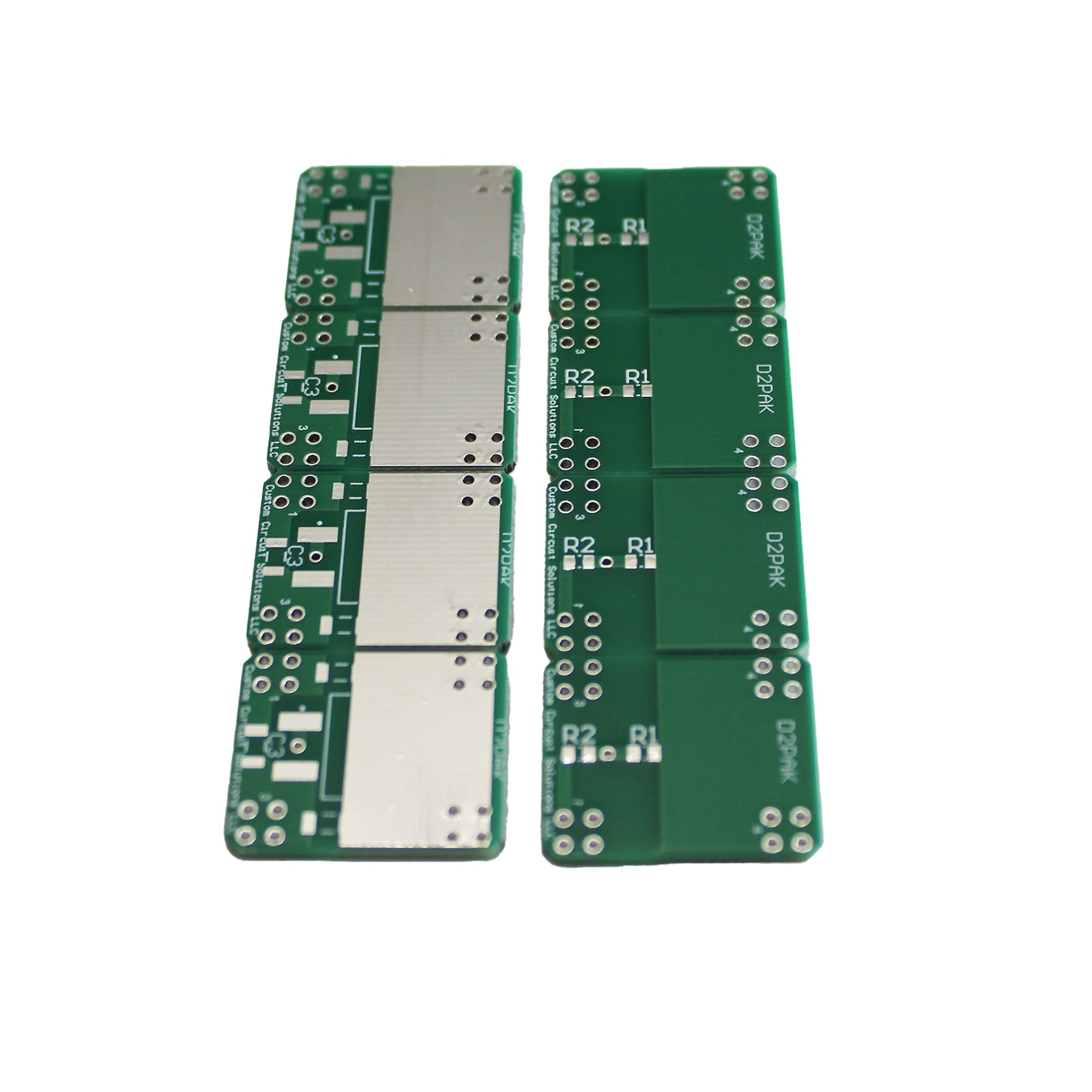

D2PAK (DPAK) to DIP Adapter Header with Integrated SMT Pads (8 Pieces)
Custom Circuit Solutions LLC
SKU: D2PAK-LF
-
Modular Component Breakout Boards such as these include both an SMD adapter (D2PAK or DPAK) and passive component pads in a single reusable SMD breakout board.
- Dual Rows of Solder Pin Holes provides much more flexibility in soldering and mounting your circuit. Jumper wires can also be soldered between holes, reducing number of breadboard connections.
- Oversized Solder Pads simplify hand soldering. Can be easily soldered without special equipment in as little as a few seconds. See our website for easy soldering tips.
- 0603/0805 Footprint Pads between each pin and the local common plane (or pin to pin) allow for integrated onboard SMT res/cap connections, greatly reducing the number of wired connections.

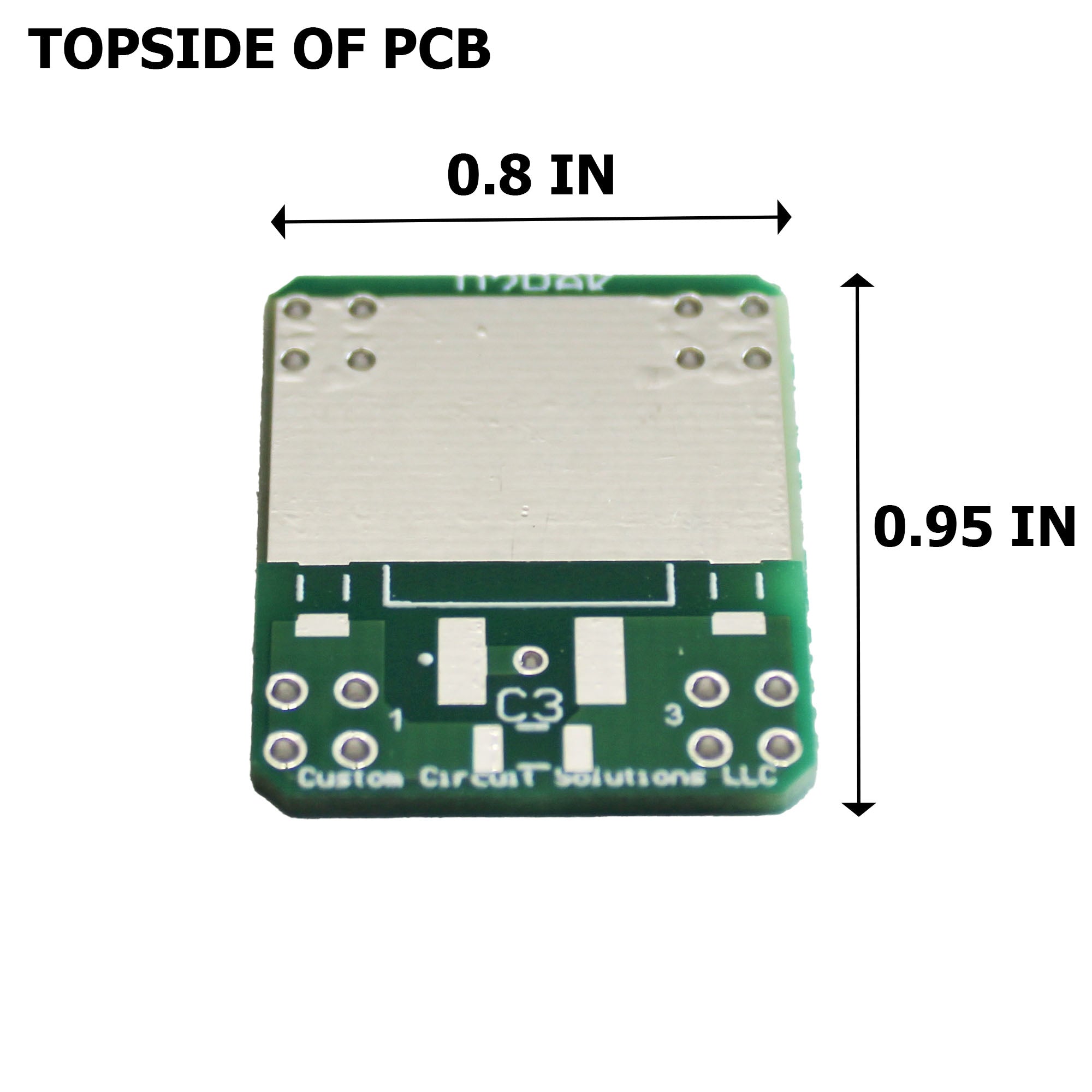

- Oversized thermal pad on top and bottom of board for improved thermal performance of high power voltage regulators and transistors

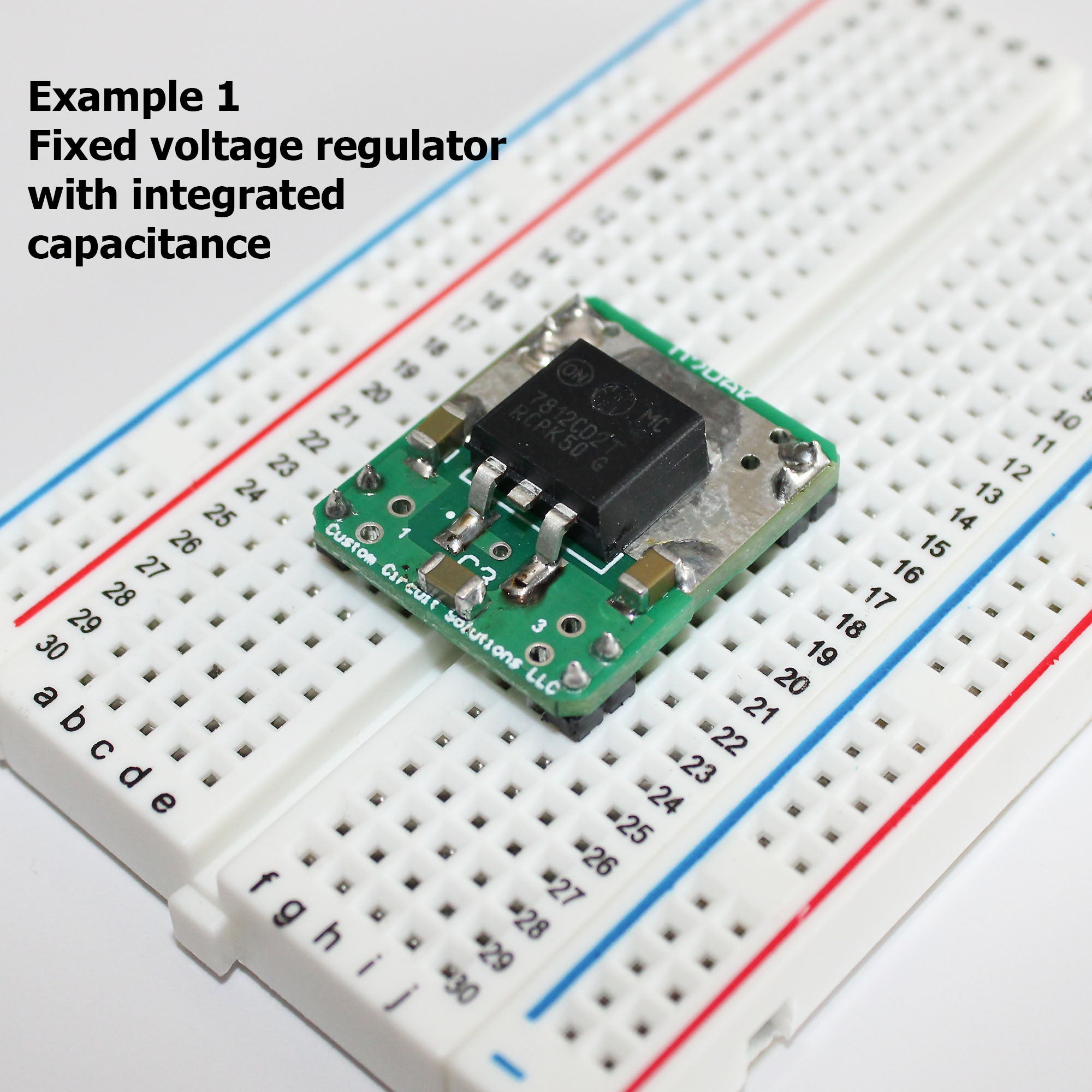

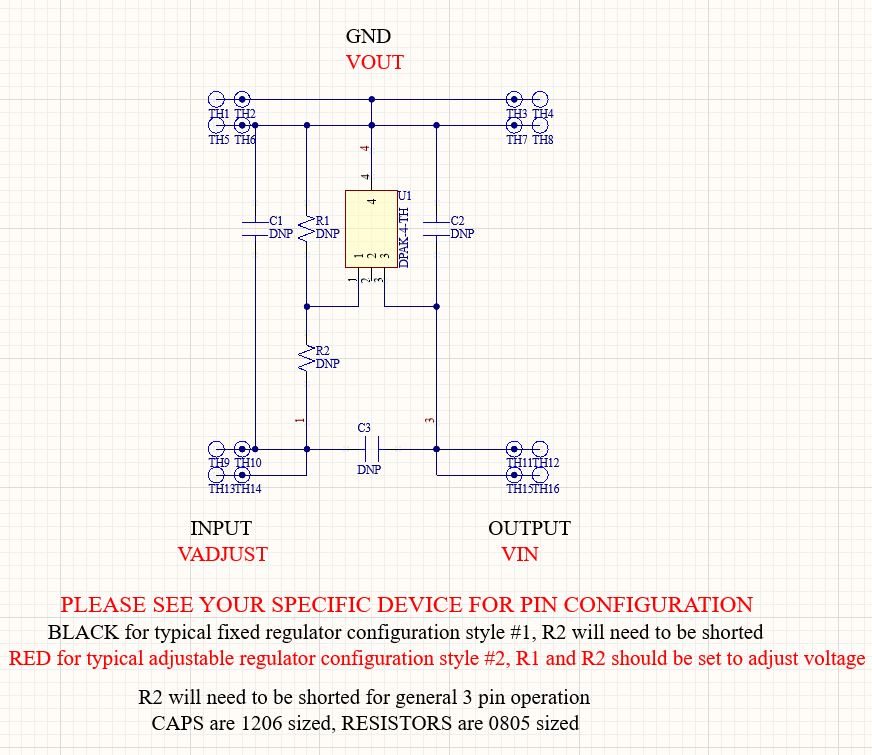

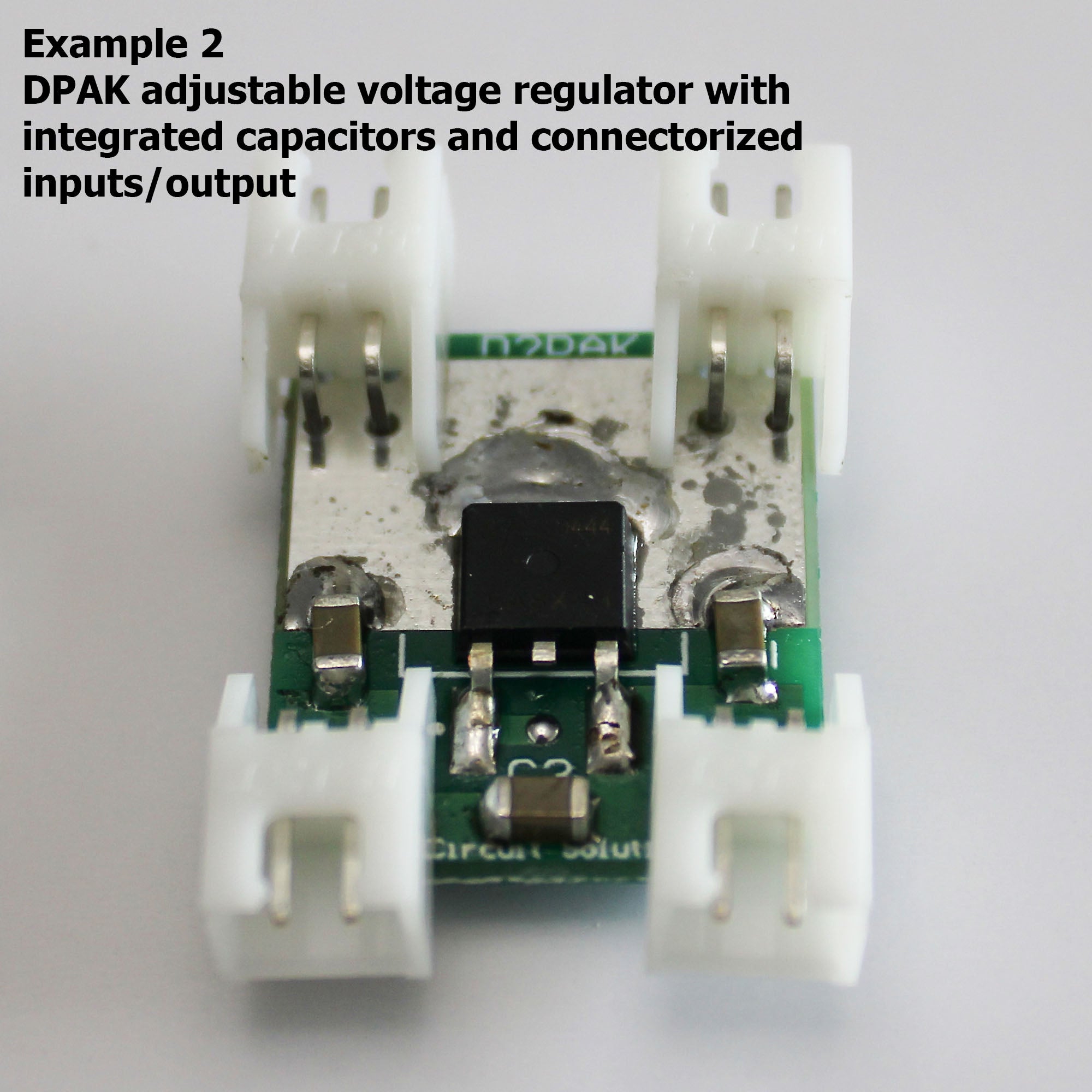

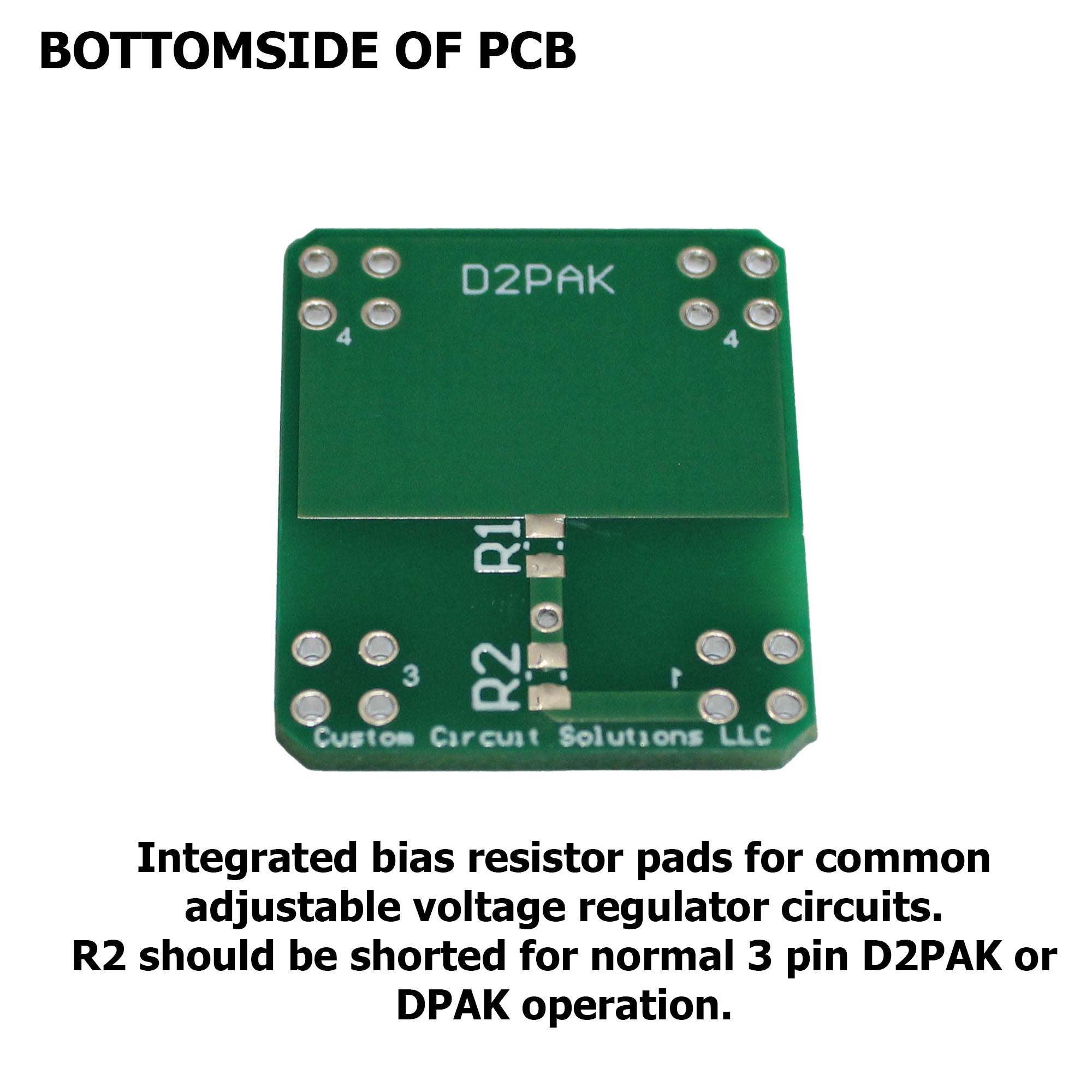

- Supports two most common 3 pin voltage regulator IC footprints with integrated bias resistors for adjustable regulator circuits.
- Manufactured with Leadfree HASL for RoHS compliance
