Custom Circuit Solutions LLC SKU: ASB-Large-LF-2

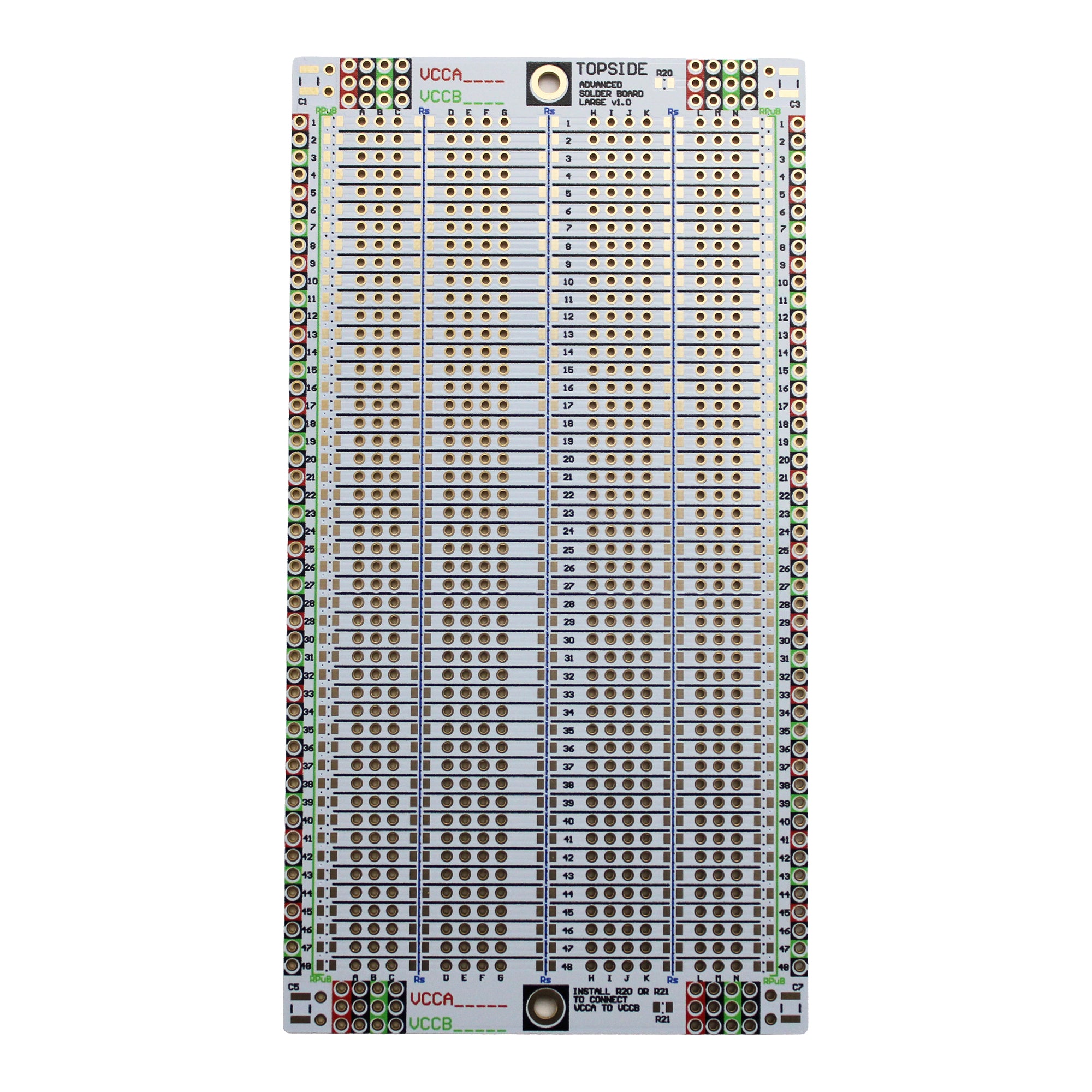

  • Patent-Pending Hybrid Solderable Breadboard Design – Unlike a traditional 5-hole prototype board, each pin node is intelligently split into a 4-hole group and a 3-hole group with an integrated series SMD resistor location between the two, enabling real-world circuit topologies directly on the board.
  • Integrated 0805/0603 Surface-Mount Passive Pads – Every connected node (4 and 3 hole groupings) includes dedicated SMD pads for pull-up, pull-down, and series resistors or capacitors, allowing biasing, voltage dividers, RC filters, LEDs with current limiting, and signal conditioning without through-hole components.

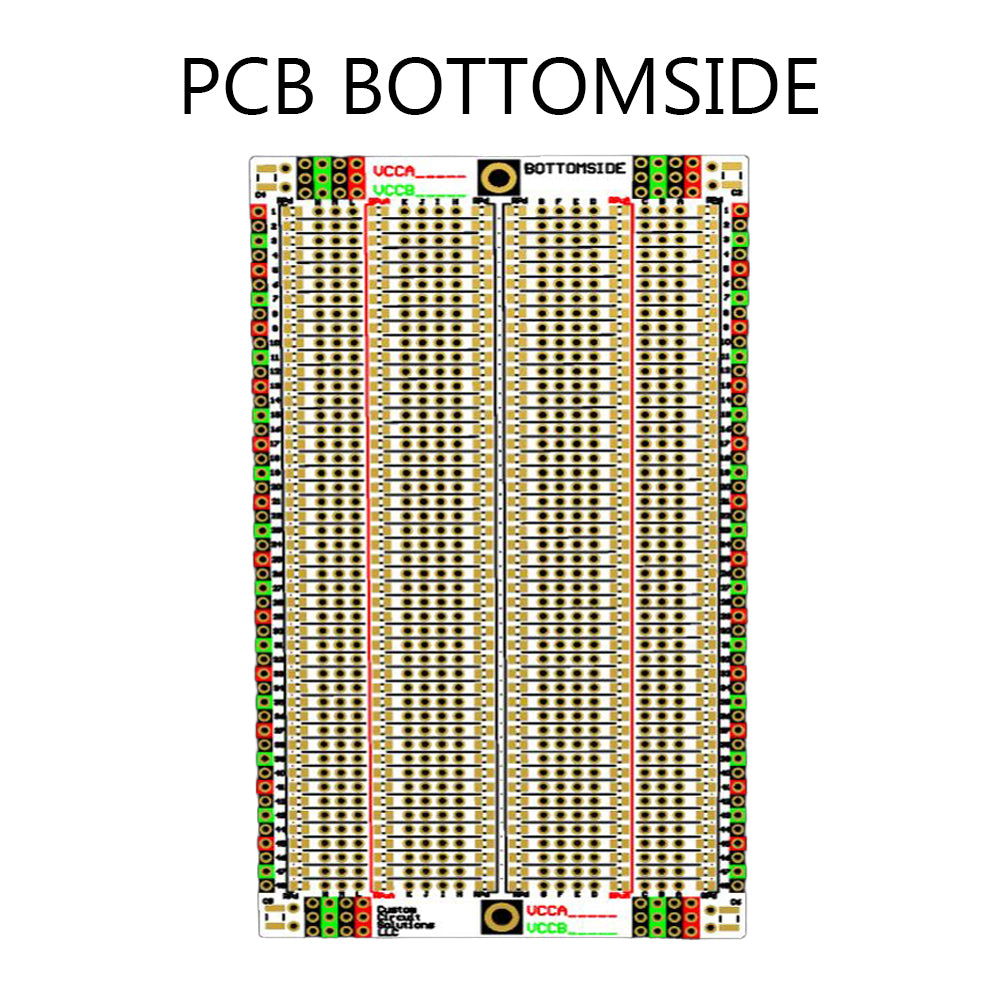

  • 4-Layer PCB with Dual Ground Planes – Top and bottom layers provide dedicated power routing, while dual internal ground planes minimize loop area, reduce parasitics, and significantly lower EMI and noise.
  • Dual Voltage Rails for Advanced Prototyping – Features two independent power rails (VCCA and VCCB) plus common ground. Pull-ups on 4-hole nodes connect to VCCA, while pull-ups on 3-hole nodes connect to VCCB for flexible mixed-voltage designs.
  • PCB Board-Like Performance for Prototypes – By integrating passives directly at each pin and eliminating jumper-heavy through-hole wiring, circuits behave much closer to a true custom circuit board — ideal for accurate testing, validation, and signal-integrity-sensitive designs.
$9.99 -100%
$9.99

In stock, ready to ship

Advanced Solderable Breadboard, 48 Rows, Hybrid Perfboard Includes Integrated 0805/0603 SMD Pullup/Pulldown/Series Passive Pads - 4 Layer Protoboard with Ground and Power Planes , Size: Large, 2 Pieces
$9.99
$9.99
